Electronic enclosure

This is a model of an electronic enclosure which contains microwave components on one side of a central air cooled coldplate and printed circuit boards on the other side.  A fan on the left side draws ambient are through the central finned heat exchanger.  The equipment is outside so in addition to the electronics power dissipation, there is a solar heat load on the top of the box.  The thermal interface of the removable top cover is included, wedgelock resistances at the PCBs as well as radiation and convection to the ambient.


Click to enlarge

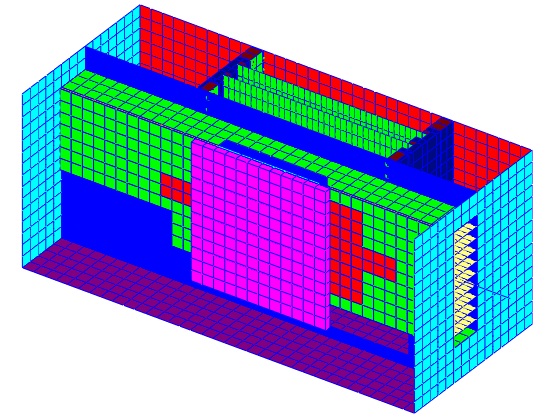

Electronic box with the covers removed, colors based on properties
Outside temperatures
Inside temperatures with the mesh turned on

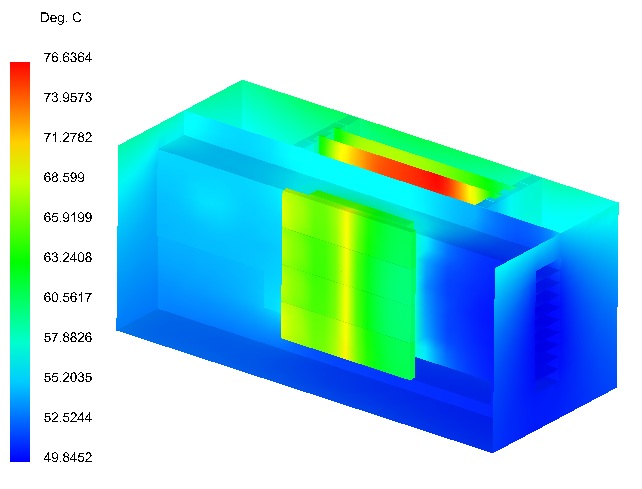

Inside temperatures with the mesh turned off

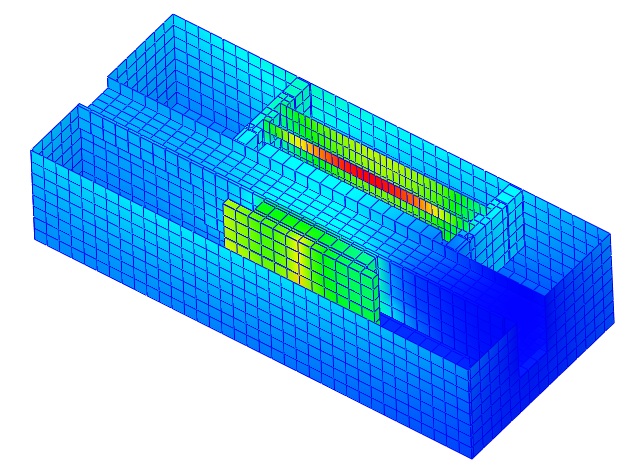

Inside temperatures of only the bottom

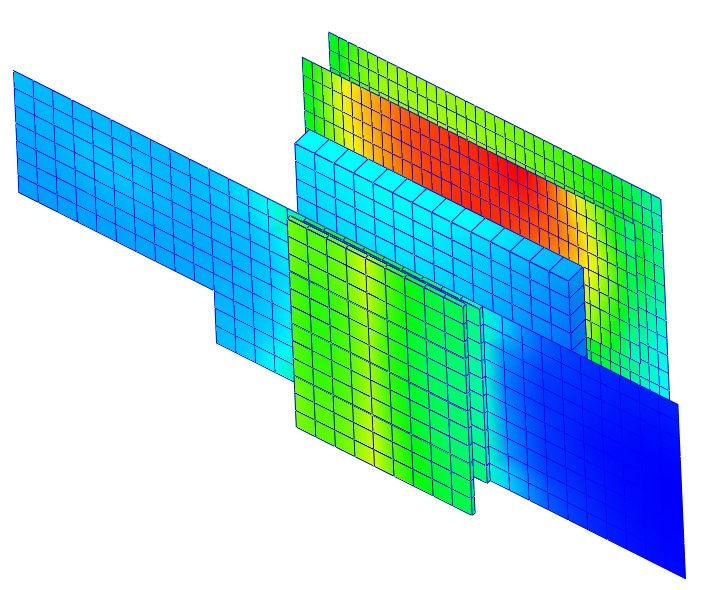

Printed circuit board temperatures
